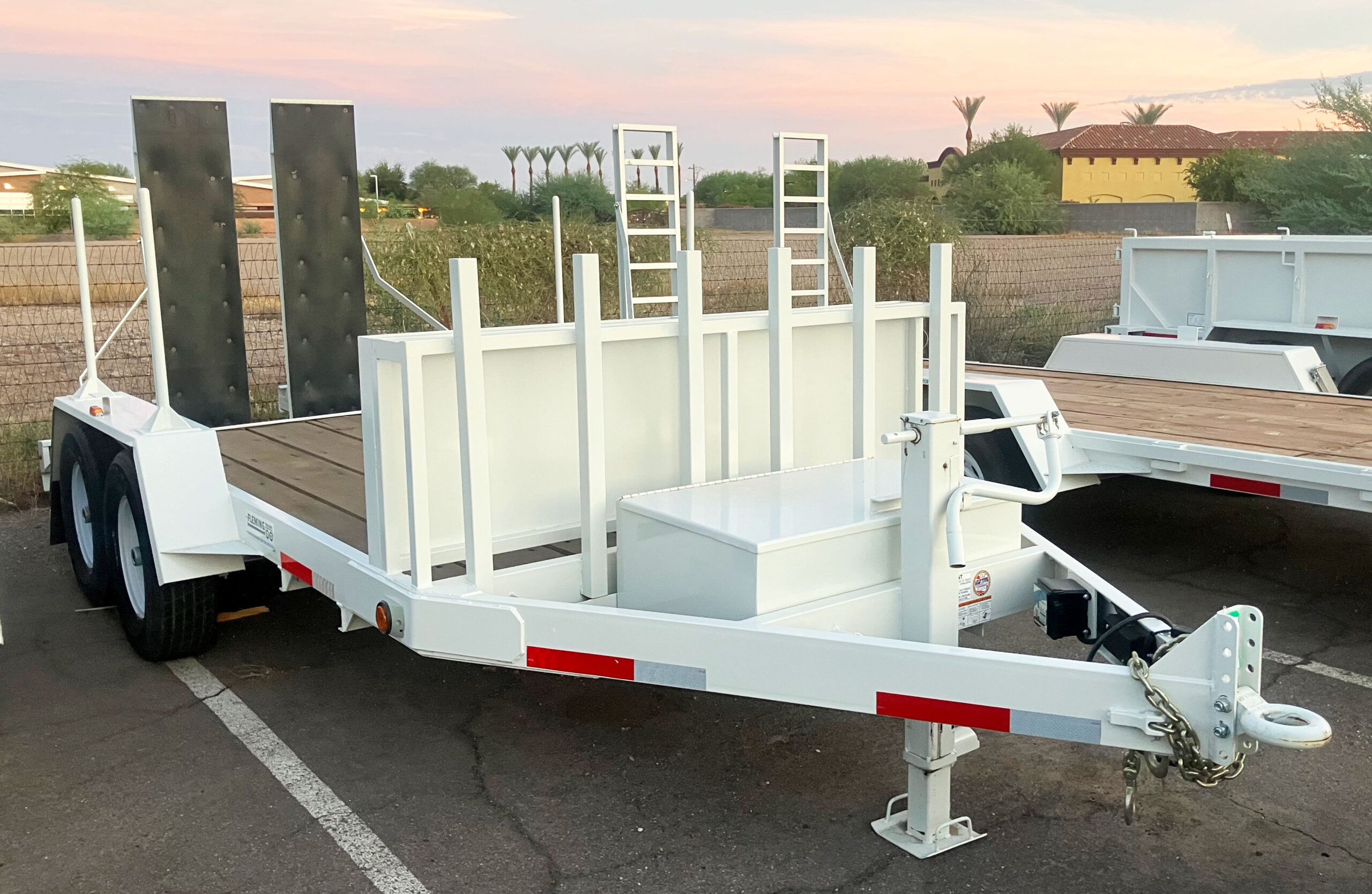

Tandem Axle Single Wheel Tagalong Trailer

Tandem Axle Single Wheel Tagalong Trailer
Tandem Axle Single Wheel Tagalong Trailer - Image 2

6” X 10.5# Channel Main w/ 3” Channel Cross Members on 16.75” CL

3/8” X 5” HRFB Belting 18” Forward and Aft of Front Bulkhead

Full Specifications:

  • Ramps:
    • 2 ea. 18” W X 71.5” L, 3” Channel Tapered to a Point w/ 3” X 2” X 3/16” Angle X-Pieces on
    • 8.75” Centers Capped w/ 6/4 (1.5”) X 7” Apitong Hardwood with Rubber Traction Mat w/
    • 1 ea. 1-1/4” Spring Assist per Ramp
  • Tie Downs:
    • 3 ea. 5/8” D-rings Across Front Bulkhead
    • 5 ea. 5/8” D-rings per Side evenly Spaced
  • Lights: Vison Brand LED, Recessed, Sealed, Shock Proof & DOT Approved
  • Electrical:
    • Wire Pulled thru Metal Conduit, Heat Shrink Butt Connectors,
    • Rubber Grommets where Wire Pass thru Metal. Wire Terminated
    • In a Junction Box w/ 36″ L 6-Conductor Wire Harness.
  • Plug Type: Pollack 11-700 on a 6-Conductor Wire Harness
  • Jack: 10,000 Lbs. Drop Foot Side Wind
  • Toolbox: 10” H Tapered Compartment in Tongue w/ 10 Ga Lockable Lid
  • Sign & Tool Rack:
    • 1 ea. Across Front w/ 6 ea. Tool Holders
    • 1 ea. Along Left Hand Side @ Mid-Fender
  • Cone Holders: 2 ea. per Side (4 ea. Total), Top of Fenders
  • GVWR: 12,000 Lbs.
  • Empty Weight: 2,000 Lbs.
  • Maximum Capacity: 10,000 Lbs.
  • Color – White

Starting at:

$16,878

Category

Description

Deck: 8/4 (2”) x 12” Apitong Hardwood
Hitch: 2‑Bolt, 14K Rated Pintle Ring on an 8” Adjustable Channel
Mounted: Flush to bottom of 6” channel frame
Axles: 2 ea. 6,000 lbs. w/ 8 on 6.5” 1/2” lugs, electric brakes, grease‑lube on all 4 hubs (89HF/76” SC)
Suspension: 3,500 lbs. slipper springs w/ 33” axle split using HGR‑202 & A/P‑202 kits
Tires: 5 ea. ST235/80R16 “E” 10‑ply on an 8‑hole HD spoke wheel
Spare: Shipped loose
